Paint Mist Filter Box KH780--A
KH780--A
Advanced technology, process quality control, outstanding paint mist capture ability, easy assembly and molding, the lowest logistics cost in the industry
Application: Protecting rear-end filtering products
Main features: cheap, light, compact structure, easy to handle
Short replacement cycle, large market demand
Low resistance, high dust holding capacity

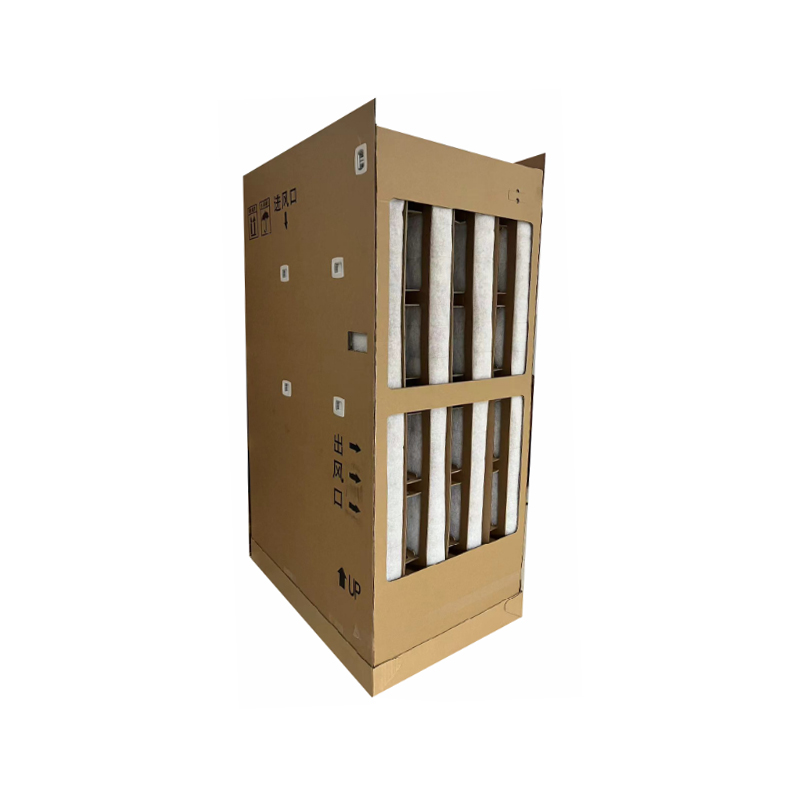

Product name: Top air intake integrated paint mist filter box
Model: KH780--A
Specifications: 780*1180*1960mm
Maximum sustainable working temperature: 200° C
Sustainable working humidity: 80%RH
Rated air volume: 3300M3/h
Initial resistance: 120pa@400m3h
Filter accuracy: atomized particles above 5 microns
Filter effect: above 99%
Paint holding capacity: above 250kg
Coarse air filter: mainly intercepts dust particles with a particle size of 2~5μm or more in the airflow. A purification device.
